SSAW Steel Pipe-EC2

SSAW Steel Pipe-EC2

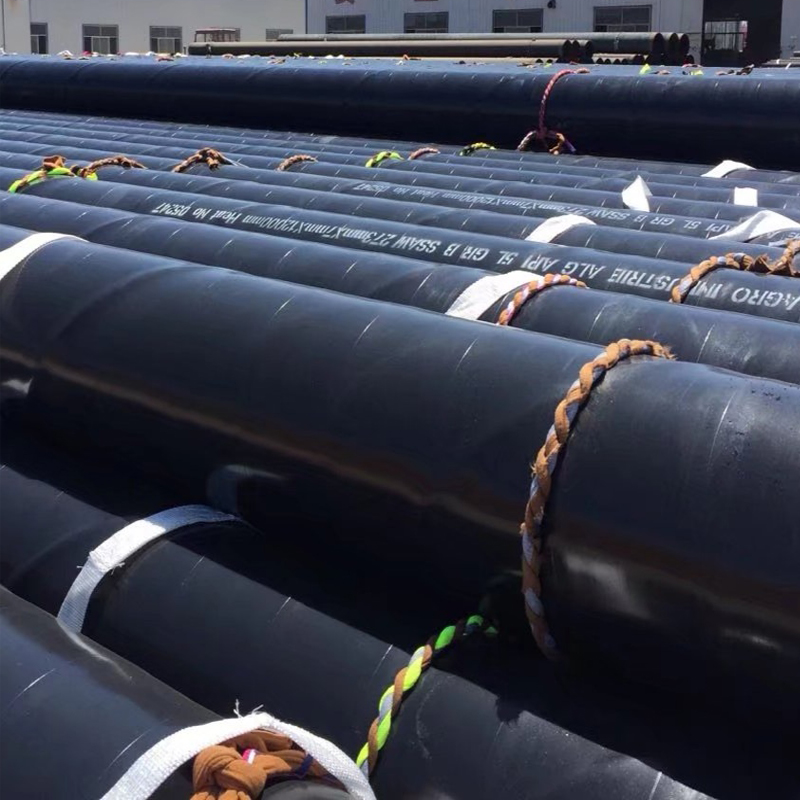

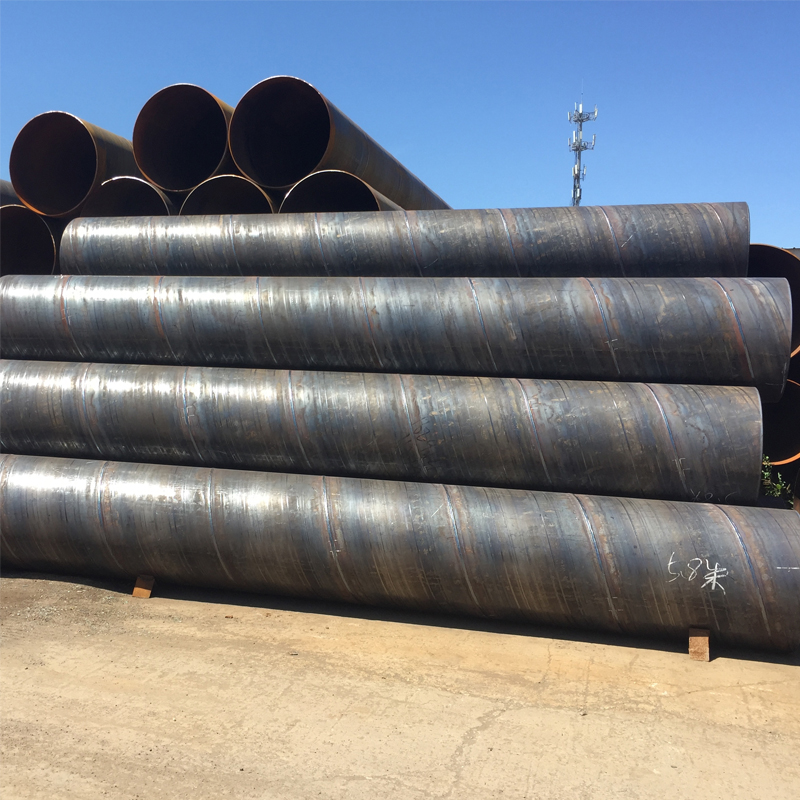

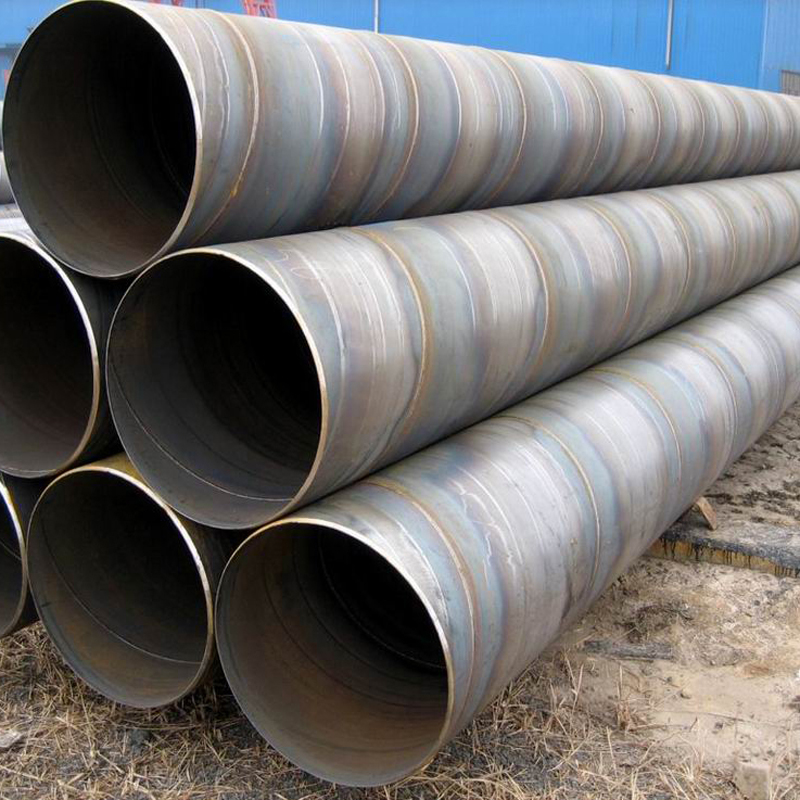

SSAW steel pipe (Spiral Submerged Arc-Welding Pipe), also called HSAW pipe (Helical SAW), welding line shape like a helix. It uses the welding technology of spiral submerged arc-welding. There is a wide application for SSAW steel pipes, such as oil and gas pipeline systems, construction structure, water transport and sewage treatment, thermal industry, buildings, etc.

Standard :
ASTM AISI DIN JIS GB EN
Material :
A36、A53、A106、A192、ST52、Q355、A210、T12、T11、P5、P9、P91、T22、A333、4140、5135 etc.
Thickness :
1mm-150mm
Process :
Argon arc welding、Submerged arc welding、High frequency welding

Inquire Now

Product categories

how can we help you

Tel : +86-18059296519

Whatsapp : +8618059296519

Email : [email protected]

New Products

High Quality SUS304 End Cap-EC1
Read More

Product Details

SSAW Steel Pipe-EC2

Standard & Class

Classfication	Standard	Main Products
Steel Pipe for Fluid Service	GB/T 14291	Welded pipe for mine fluid sevice
	GB/T 3091	Welded pipe for low pressure fluid service
	SY/T 5037	Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service
	ASTM A53	Black and hot-hipped galvanized welded and seamless steel pipe
	BS EN10217-2	Welded steel tybes for pressure purposes - delivery technical conditions - part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
	BS EN10217-5	Welded steel tybes for pressure purposes - delivery technical conditions - part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure	GB/T 13793	Longitudinally electric resistance welded steel pipe
	SY/T 5040	Spirally submerged arc welded steel pipe piles
	ASTM A252	Welded and seamless steel pipe piles
	BS EN10219-1	Cold formed welded structural hollow sections of non-alloy and fine grain steels - part1: Technical delivert conditions
	BS EN10219-2	Cold formed welded structural hollow sections of non-alloy and fine grain steels - part2: tolerances dimmsions and sectional properties
Line Pipe	GB/T 9711.1	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe)
	GB/T 9711.2	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe)
	API 5L PSL1/2	Line pipe
Casing	API 5CT/ ISO 11960 PSL1	Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries

Chemical Analysis and Mechanical Properties

Standard	Grade	Chemical Composition(max)%					Mechanical Properties(min)
Standard	Grade	C	Si	Mn	P	S	Tensile Strength(Mpa)	Yield Strength(Mpa)
API 5CT	h40	-	-	-	-	0.030	417	417
	J55	-	-	-	-	0.030	517	517
	K55	-	-	-	-	0.030	655	655
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	335	335
	B	0.26	-	1.20	0.030	0.030	415	415
	X42	0.26	-	1.30	0.030	0.030	415	415
	X46	0.26	-	1.40	0.030	0.030	435	435
	X52	0.26	-	1.40	0.030	0.030	460	460
	X56	0.26	-	1.40	0.030	0.030	490	490
	X60	0.26	-	1.40	0.030	0.030	520	520
	X65	0.26	-	1.45	0.030	0.030	535	535
	X70	0.26	-	1.65	0.030	0.030	570	570
API 5L PSL2	B	0.22	0.45	1.20	0.025	0.015	415	415
	X42	0.22	0.45	1.30	0.025	0.015	415	415
	X46	0.22	0.45	1.40	0.025	0.015	435	435
	X52	0.22	0.45	1.40	0.025	0.015	460	460
	X56	0.22	0.45	1.40	0.025	0.015	490	490
	X60	0.12	0.45	1.60	0.025	0.015	520	520
	X65	0.12	0.45	1.60	0.025	0.015	535	535
	X70	0.12	0.45	1.70	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
GB/T 9711.1	L210	-	-	0.90	0.030	0.030	335	335
	L245	-	-	1.15	0.030	0.030	415	415
	L290	-	-	1.25	0.030	0.030	415	415
	L320	-	-	1.25	0.030	0.030	435	435
	L360	-	-	1.25	0.030	0.030	460	460
	L390	-	-	1.35	0.030	0.030	490	490
	L415	0.26	-	1.35	0.030	0.030	520	520
	L450	0.26	-	1.40	0.030	0.030	535	535
	L485	0.23	-	1.60	0.030	0.030	570	570
GB/T3091/ SY/T503	Q195	0.12	0.30	0.50	0.035	0.040	315	315
	Q215B	0.15	0.35	1.20	0.045	0.045	335	335
	Q235B	0.20	0.35	1.40	0.045	0.045	370	370
	Q345B	0.20	0.50	1.70	0.035	0.035	470	470
ASTM A53	A	0.25	0.10	0.95	0.050	0.045	330	330
ASTM A53	B	0.30	0.10	1.20	0.050	0.045	415	415
ASTM A252	1	-	-	-	0.050	-	345	345
	2	-	-	-	0.050	-	414	414
	3	-	-	-	0.050	-	455	455
EN10217-1	P195TR1	0.13	0.35	0.70	0.025	0.020	320	320
	P195TR2	0.13	0.35	0.70	0.025	0.020	320	320
	P235TR1	0.16	0.35	1.20	0.025	0.020	360	360
	P235TR2	0.16	0.35	1.20	0.025	0.020	360	360
	P265TR1	0.20	0.40	1.40	0.025	0.020	410	410
	P265TR2	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-2	P195GH	0.13	0.35	0.70	0.025	0.020	320	320
	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-5	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
EN10217-5	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10219-1	S235JRH	0.17	-	1.40	0.040	0.040	360	360
	S275JOH	0.20	-	1.50	0.035	0.035	410	410
	S275J2H	0.20	-	1.50	0.030	0.030	410	410
	S355JOH	0.22	0.55	1.60	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.60	0.030	0.030	470	470
	S355K2H	0.22	0.55	1.60	0.030	0.030	470	470

Tolerance of Outside Diameter and Wall Thickness

Standard	Tolerance of Pipe Body		Tolerance of Pipe End		Tolerance of Wall Thickness
Standard	Out Diameter	Tolerance	Out Diameter	Tolerance	Tolerance of Wall Thickness
GB/T3091	OD≤48.3mm	≤±0.5	OD≤48.3mm	-	≤±10%
	48.3<od≤273.1mm </od≤273.1mm	≤±1.0%	48.3<od≤273.1mm< span="" style="padding: 0px; margin: 0px;"> </od≤273.1mm<>	-
	273.1<od≤508mm </od≤508mm	≤±0.75%	273.1<od≤508mm< span="" style="padding: 0px; margin: 0px;"> </od≤508mm<>	-0.8～+2.4
	OD>508mm	≤±1.0%	OD>508mm	-0.8～+3.2
GB/T9711.1	OD≤48.3mm	-0.79～+0.41	-	-	OD≤73	-12.5%～+20%
	60.3<od≤457mm </od≤457mm	≤±0.75%	OD≤273.1mm	-0.4～+1.59	88.9≤OD≤457	-12.5%～+15%
	508<od≤941mm </od≤941mm	≤±1.0%	OD≥323.9	-0.79～+2.38	OD≥508	-10.0%～+17.5%
	OD>941mm	≤±1.0%	-	-	-	-
GB/T9711.2	60<od≤610mm </od≤610mm	±0.75%D～±3mm	60<od≤610mm </od≤610mm	±0.5%D～±1.6mm	4mm<wt<25mm </wt<25mm	±12.5%T～±15.0%T
	610<od≤1430mm </od≤1430mm	±0.5%D～±4mm	610<od≤1430mm </od≤1430mm	±0.5%D～±1.6mm	WT≥25mm	-3.00mm～+3.75mm
	OD>1430mm	-	OD>1430mm	-	-	-10.0%～+17.5%
SY/T5037	OD<508mm	≤±0.75%	OD<508mm	≤±0.75%	OD<508mm	≤±12.5%
SY/T5037	OD≥508mm	≤±1.00%	OD≥508mm	≤±0.50%	OD≥508mm	≤±10.0%
API 5L PSL1/PSL2	OD<60.3	-0.8mm～+0.4mm	OD≤168.3	-0.4mm～+1.6mm	WT≤5.0	≤±0.5
	60.3≤OD≤168.3	≤±0.75%	168.3<od≤610 </od≤610	≤±1.6mm	5.0<wt<15.0 </wt<15.0	≤±0.1T
	168.3<od≤610 </od≤610	≤±0.75%	610<od≤1422 </od≤1422	≤±1.6mm	T≥15.0	≤±1.5
	610<od≤1422 </od≤1422	≤±4.0mm	OD>1422	-	-	-
	OD>1422	-	-	-	-	-
API 5CT	OD<114.3	≤±0.79mm	OD<114.3	≤±0.79mm	≤-12.5%
API 5CT	OD≥114.3	-0.5%～1.0%	OD≥114.3	-0.5%～1.0%	≤-12.5%
ASTM A53	≤±1.0%		≤±1.0%		≤-12.5%
ASTM A252	≤±1.0%		≤±1.0%		≤-12.5%

SSAW steel pipe is the raw material of strip coil, often temperature extrusion molding, automatic double-wire double submerged arc welding process made of spiral seam pipe. Spiral steel pipe will strip into the pipe unit, the multi-roll rolling, strip rolled up, forming a circular gap opening gap, adjust the squeeze roll reduction, the weld gap control in the 1 ~ 3mm, and make both ends of the weld flush.
