The Complete Guide To Electric Actuator Gate Valves

The Complete Guide To Electric Actuator Gate Valves
July 12, 2024

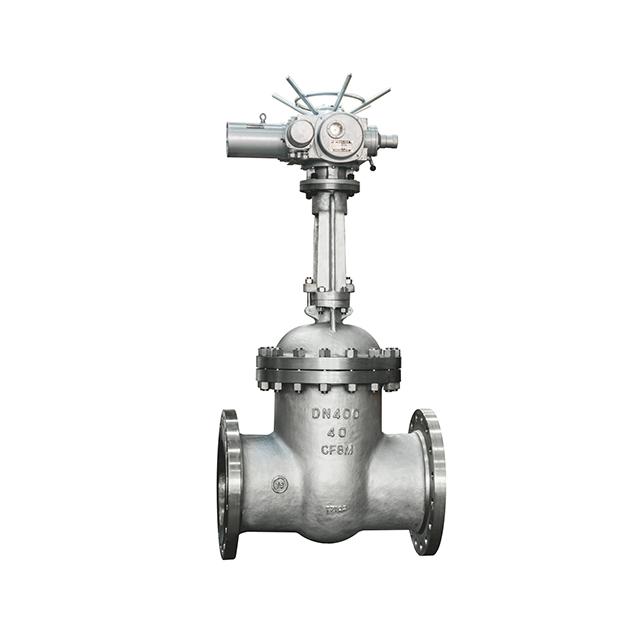

What are Electric Actuator Gate Valves

Electric actuator gate valves are crucial components in various industries, offering reliable and efficient control of fluid flow. These valves play a vital role in regulating the movement of liquids or gases through pipelines, allowing for isolation or diversion of flow as needed. In this comprehensive guide, we will delve into the world of electric actuator gate valves, providing insights into their definitions, types, working principles, and key features to help you understand these products better.

Types of Electric Actuator Gate Valves

Electric actuator gate valves are devices that control the flow of fluids by using an electric actuator to operate a gate or wedge that obstructs or allows passage through the valve. They come in different types, each suitable for specific applications. The common types include:

Rising Stem Gate Valves

These valves feature a stem that moves in a linear upward direction when opening or closing the gate. The position of the stem provides a clear indication of the valve’s status.

Non-Rising Stem Gate Valves

In contrast to rising stem gate valves, non-rising stem gate valves have a stem that does not move linearly when operating the gate. Instead, the stem rotates to open or close the valve, making them ideal for applications with limited vertical space.

Working Principles of Electric Actuator Gate Valves

Gate Valve Design

  • Gate Mechanism: Gate valves have a flat or wedge-shaped gate that is raised and lowered to control the flow of fluid. When the gate is lifted, the flow path is fully open, and when it is lowered, the flow path is closed.

Electric Actuator

  • Motorized Operation: An electric actuator is a device that uses an electric motor to drive the valve mechanism. It can be controlled remotely and is often part of an automated system.
  • Position Control: The electric actuator allows precise control over the position of the gate within the valve. This enables accurate regulation of fluid flow.

Electric actuator gate valves operate based on the principle of obstructing or permitting fluid flow through a gate or wedge mechanism. When the electric actuator receives a signal, it activates the valve’s gate, either raising it to open the flow path or lowering it to block the passage. The actuator provides precise control, allowing for quick and accurate adjustments to regulate fluid flow.

Key Features and Advantages of Electric Actuator Gate Valves

Electric actuator gate valves offer several features that make them advantageous in various applications. Some key features include:

  • Efficient Flow Control

Electric actuator gate valves provide precise control over fluid flow, allowing for accurate adjustments and maintaining desired flow rates.

  • Remote Operation

With electric actuation, these valves can be operated remotely, offering convenience and enabling control from a central location. This is especially useful in large-scale industrial settings.

  • Quick Response Time

Electric actuator gate valves have fast response times, allowing for rapid opening and closing of the valve, which is crucial in situations that require immediate flow control.

  • Reliable Performance

These valves are known for their reliability and durability. They are designed to withstand high-pressure conditions and harsh environments, ensuring long-lasting performance.

  • Easy Maintenance

Electric actuator gate valves generally require minimal maintenance, reducing downtime and costs associated with servicing or repairs.

Applications of Electric Actuator Gate Valves

Electric actuator gate valves find applications in a wide range of industries, including oil and gas, water treatment, power generation, chemical processing, and more. They are commonly used in systems that require precise flow control, isolation, or diversion of fluid streams.
