The Comprehensive Guide To The Bellow Globe Valve

The Comprehensive Guide To The Bellow Globe Valve
June 26, 2024

Looking for a comprehensive guide to bellow globe valves? Look no further! Our guide covers everything you need to know about this type of valve, including its design, features, advantages, and applications. Whether you’re a beginner or an experienced professional, our guide is the ultimate resource for understanding bellow globe valves and how they can be used in various industries.

Bellow globe valves are an innovative type of valve with outstanding sealing performance, featuring flexible metal bellows that seal leak-free while protecting its stem against corrosion. As a result, this type of valve makes an excellent solution for pipelines carrying hazardous or flammable substances at elevated temperatures as well as where system media requires heating up significantly.

Let’s take a detailed review of the bellow globe valves.

What is a Bellow Globe Valve?

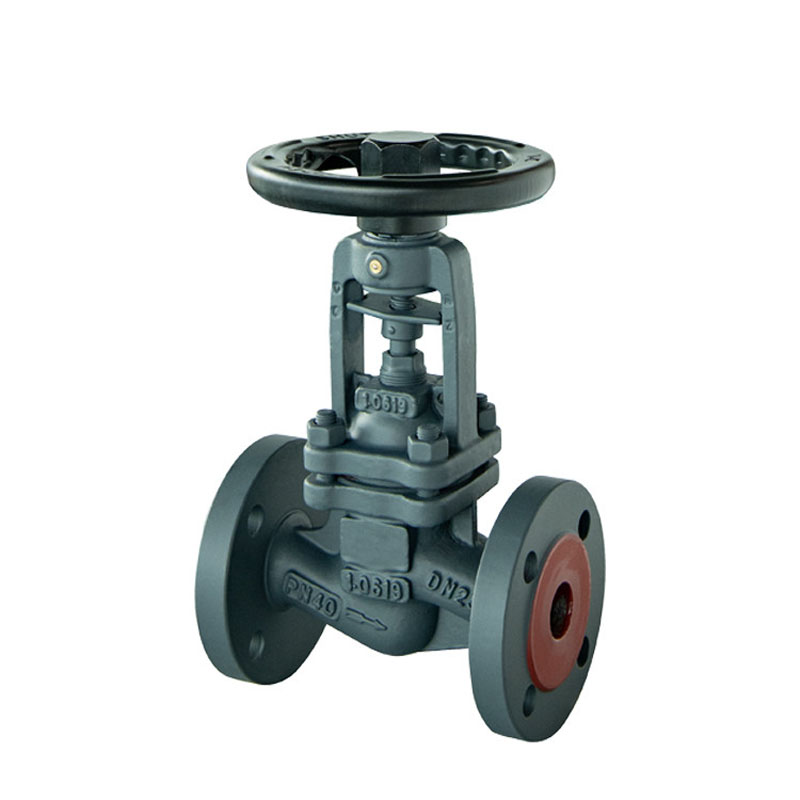

A bellow globe valve is a type of valve that is designed to regulate or control the flow of fluids through a pipeline. It consists of a globe-shaped body, a bellow seal, and a stem that is attached to a disc or plug. The bellow seal is a flexible component that is designed to provide a seal around the stem, preventing fluid from leaking out of the valve.

A bellow globe valve is a type of pipe valve with an internal bellows seal for leakproof protection and to protect its stem from corrosion, prolonging its lifespan.

Bellow globe valves come in various sizes and materials for different applications; selecting one that best meets your requirements is key to meeting them successfully.

Types of Bellow Globe Valve

There are different kinds of bellow globe valves. They are typically divided by body type, material of construction, number of seats, and method of activation.

Globe valves consist of a bonnet, body, stem, seat, and disc or plug, all connected together with vertically moving stems to open or close them.

Forged Bellows

Bellow globe valves are specially designed valves used in industries where leakage risk is high. Such industries include nuclear power plants, chemical facilities, water treatment services, and petroleum companies – among others.

A forged bellow globe valve employs a metal bellow as a seal against stem leakage, offering a double seal system that helps eliminate leakage risk while adding safety measures for the medium being transported through it.

Welded Bellows

Welded bellows are manufactured using various forms of ductile metal and can come in an assortment of sizes and alloy types designed to withstand various harsh environments.

These welded bellows are often employed in applications requiring flexible sealing solutions due to their ability to flex in multiple directions and accommodate various pressure and temperature levels. Furthermore, various spring rates are available so as to meet different levels of pressure or temperature.

Metal Bellows

Metal bellows have many industrial and mechanical applications. These precision parts can absorb thermal expansion, vibrations, and movements to keep equipment functioning effectively.

Welded bellows are an extremely precise form of precision metallurgy that can be constructed using various exotic materials. Their advantage lies in their superior tensile strength, resistance to nicks and dents, as well as greater flexibility than formed bellows.

Rubber Bellows

Rubber bellows are flexible seals used to protect mechanical structures from the environment while still permitting movement. They’re commonly found in industries like industry and transportation.

Molded bellows can be created using various materials, including natural rubber and Neoprene(r). Each provides different levels of oil-, flame- and sunlight/ozone resistance.

Application of bellow globe valve in points

Bellows globe valves are widely used in many industries and applications due to their ability to provide a high degree of sealing and reliability. Some common applications of bellow globe valves include:

  • Chemical processing
  • Food and beverage
  • HVAC systems
  • Petrochemical industry
  • Pharmaceuticals
  • Power plants
  • Water treatment
  • Working principles of bellow globe valve

    • Bellow globe valves use bellows to create a seal around the valve stem, preventing fluid from leaking.
    • When the valve is opened, the stem rises and moves the disc or plug away from the valve seat, allowing fluid to flow through the valve.
    • To close the valve, the stem is turned or pushed downward, and the disc or plug is forced against the valve seat, blocking the flow of fluid.
    • The bellows are located around the valve stem and expand or contract as the stem moves up and down, maintaining a seal that prevents fluid from leaking through the valve.
    • The movement of the stem is typically controlled by a handwheel or actuator, allowing for precise control of the flow rate.

    Advantages and Features of Bellow Globe Valve

    Bellow globe valves are widely used in industries across many disciplines to regulate fluid flows.

    These valves are an ideal way to handle hazardous media without risking leakage, which could prove potentially hazardous both to workers and the environment.

  • Cost-effectiveness

    Bellow globe valves offer an economical solution for industries with complex fluid transport needs. Not only are they durable and require little upkeep, but they’re also an economical way of protecting sensitive fluids, such as toxic ones, from spillage or leakage.

    Durability

    Bellow globe valves are highly sought-after due to their durable construction and reliable operation, plus low maintenance needs, which help lower operating costs while also cutting downtime and downtime costs.

    Additionally, these containers can withstand high temperatures and pressures – making them suitable for transporting corrosive, toxic, or dangerous liquids.

    Ease of installation

    Bellow globe valves are industrial valves used to regulate fluid flows within systems. They come in an assortment of sizes and materials with various pressure ratings for easier control.

    Bellow globe valves boast numerous benefits and features that make them attractive, such as no leakage, corrosion resistance, and maintenance-free operation. Furthermore, these valves can control multiple processes and fluids efficiently – features that make them a popular choice across many industries.

    Safety

    Safety is of utmost importance in many industries, and bellow globe valves were created with this in mind. Able to withstand high temperatures and pressures, making them suitable for various applications, these bellow globe valves indicate that safety must always come first.

    Safety benefits of pollution monitoring systems include preventing harmful emissions and eliminating leakage risks from fluid pipelines while simultaneously decreasing material losses during operations and increasing throughput.

  • Flexible

    Bellow globe valves differ from regular valves by featuring flexible metal bellows that provide a leakproof seal and protect their stem from corrosion, helping ensure a smooth operation and prevent damage to the valve itself. This feature ensures damage-free use.

    Based on their application, regulators can be constructed from various materials. For instance, stainless steel is often utilized to regulate corrosive fluids at higher temperatures and pressures, while plastic regulators provide an easy installation and maintenance experience while being suitable for hazardous or explosive environments.

    Bellow Globe Valve
